A wide range of machines gets utilized in the road construction process. They all work together to ensure the success of a project. A mini bitumen sprayer machine is one such mechanism. It is used extensively in the construction area. It helps in the mixing and laying of asphalt. Therefore, the role and importance of the bitumen sprayers can hardly be ignored or neglected. These machines help spray the bitumen material on the road before the actual process of laying begins. The procedure of spraying gets effectively monitored by the mini bitumen sprayer machine. It ensures there is no bitumen material wastage.
The mini bitumen sprayer machine is a piece of equipment that helps in various road construction projects. If you are trying to understand the functionality and efficiency of this equipment, you must first understand how the truck-mounted sprayer operates.
The truck-mounted sprayer is well-equipped with a spray bar. This bar has a definite length and keeps the spraying process fixed. Since the spray bar is foldable, you can conveniently adjust the spraying width to cover the optimum area on the road in one single flow. It is still essential to keep in mind that its variable width may not always allow you to achieve optimum levels of spraying width. Also, it is rather uneconomical to rerun the sprayer over the same surface only to cover the remaining part.
It is beneficial to use the mini bitumen sprayer machine. It helps to spread bitumen on the roadsides. These mini bitumen sprayer machines have a flexible hand spray pipe. The pipe is used for spraying bitumen on the roadsides. Why? Big-sized sprayers often find it’s difficult to reach out to remote areas.

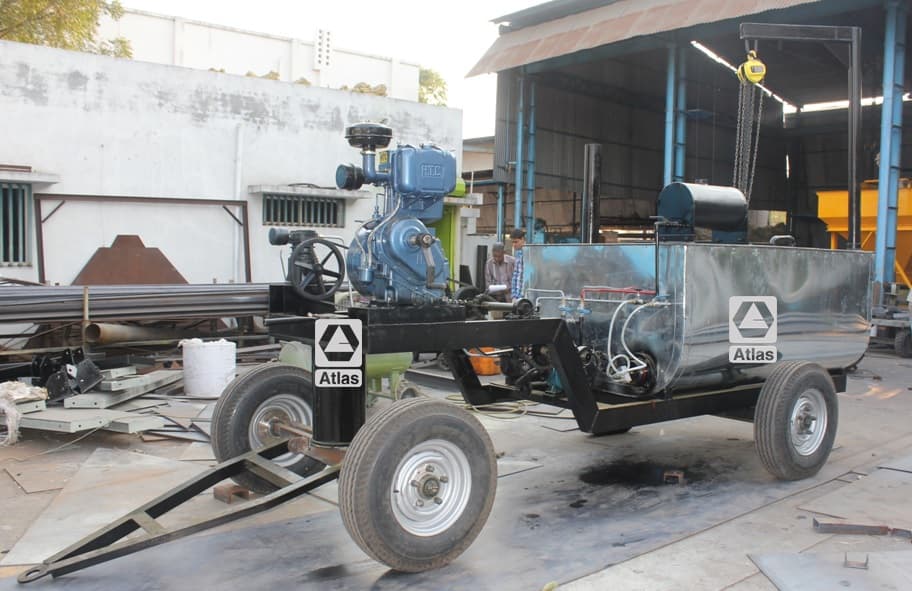

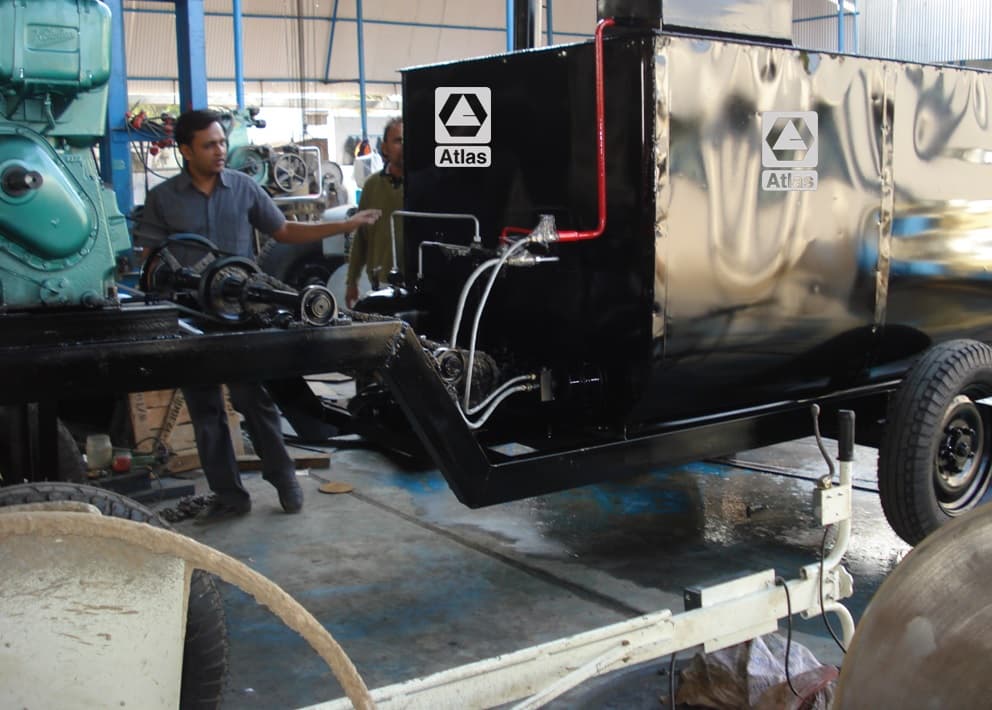

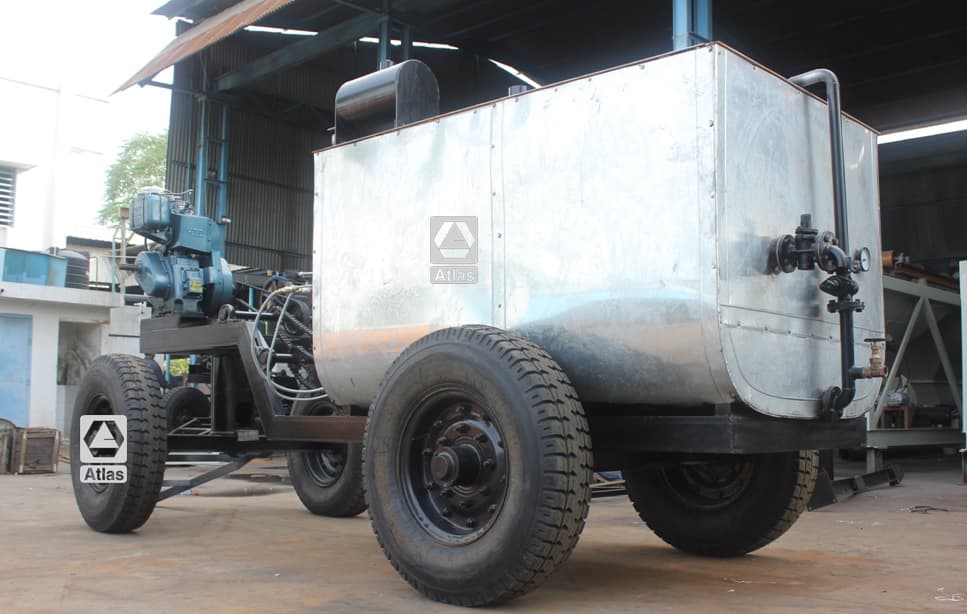

Mini machine is towed by a suitable vehicle and comes on its own chassis. Its anatomy is below.
The essential components of the mini bitumen sprayermachine areas:
• Storage tank: The storage tank comes insulated with glass wool. It helps to retain the heat. In this way, the bitumen can be kept hot for a considerably long time. The size of the storage tank is customized.
• Burner: Singe pressure diesel burner that comes with this machine has a simple design. It can be highly effective when it comes to doing its job perfectly.
• Engine: The 6.5 HP diesel engine can conveniently manage the job. The engine provides power to the air compressor and the bitumen transfer pump.
• Bitumen pump and the air compressor: The pump can effectively transfer and handle the bitumen. The air compressor plays a pivotal role in getting the road cleaned.
• Spaying system: The hand spray pipe that comes with the mini bitumen sprayer machine can help in the fast and efficient spraying of bitumen content.
• Cleaning system: The pipelines of the machine is cleaned with diesel and air.
• Chain block: There is also an optional chain block mechanism that users can avail themselves of when looking to lift the drum and get it filled up with ease.
• Towing hook: The towing hook has a simple design. It helps in easy towing by a suitable vehicle.
Conclusion: The mini bitumen sprayer machine with a hand spray bar is not something you can substitute with a truck-mounted sprayer. The truth is, the functionality of the mini bitumen sprayer equipment differs from a truck-mounted machine. While it is an expensive machine, it is still a powerful and effective machine used for projects requiring finishing.
